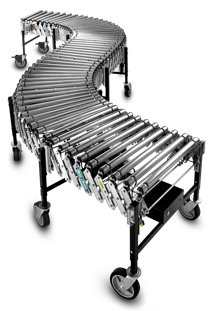

Carton box Flex Conveyor, Cardboard box Flex Conveyor

Ideally suited for loading and unloading, distribution centres, packaging, mobile assembly lines, shipping and receiving.
150kg capacity per linear metre (level)
724 to 946mm adjustable conveyor height
450, 600 and 750mm conveyor widths
Available in any length to fit your applications
Standard Lengths Compacted to Expanded:
1.42m – 3.7m
2.9m – 7.3m
4.4m – 11m
5.9m – 14.6m
width: 450mm-600mm-750mm
Continuous Duty Multiple Drive Motors – Line speed is adjustable from 0 to 36 metres per minute. Start/Stop cycle 300 times per hour. On/Off switches at both ends. Approximately 3 amps per 3.66 metres of conveyor. Durable drive motors features 0.09kw 180 volt DC with 220/240 volt AC converter.
Self Tracking – Cartons follow the twists and turns of the conveyor path without using engineered curves.
Adjustable Height – Adjustable locking bolts to raise or lower the conveyor bed height.
Square Tubing Legs – BEST offers heavy duty square tubing legs for longer service life.
50mm rollers – Heavy duty 16 gauge precision bearing rollers on 12mm axles for greater durability.
50mm Side Plates – Aluminium alloy construction features a ribbed design for added strength. Assembled with bolts and lock nuts.
Castors with brakes – 200mm x 50mm swivel castors roll easily. Castor brakes lock wheels in place while the conveyor is in use.
